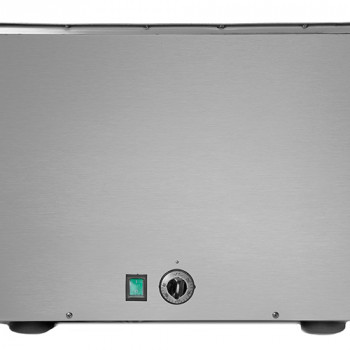

4022 Industrial Ultrasonic Cleaning System

The 4022 is an industrial ultrasonic cleaning system designed for heavy duty precision cleaning, that features a separate tank and generator design. The22-gallon tank is constructed with welded 14-gauge stainless steel and offers a stainless steel housing. An optional heater (up to 180°F or 83°C) is available. The generator offers SweepZone® Technology power and Constant Power Output circuitry. All 4000 series machines offer reliability, repeatability and cleaning consistency.

Designed and Manufactured in the USA.

Product Specifications

  • Input Power

    1200 Watts
    2000 Watts with Heat
  • Amps

    10.2 Amps
    27.9 Amps with Heat
  • Output Cleaning Frequency

    43kHz (+/- 2kHz)
  • Tank Capacity

    22.7 Gal
    85.9 L
  • Internal Tank Dimensions

    20.0 x 16.0 x 16.0 in
    50.8 x 40.6 x 40.6 cm
  • Cutout Dimensions

    25.0 x 21.0 x 20.5 in
    63.5 x 53.3 x 52.0 cm
  • Generator Dimensions

    14.0 x 17.0 x 7.0 in
    35.6 x 43.2 x 17.8 cm
  • Additional Voltages Available

  • Stainless Steel Cover Included
