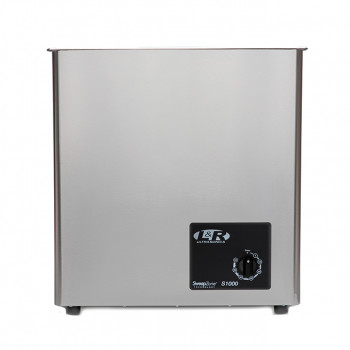

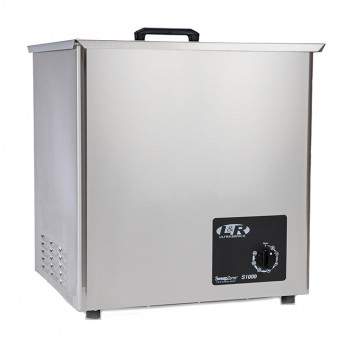

SweepZone® 1000 w/Timer & Drain

-

SweepZone® 1000 w/Timer & Drain

All SweepZone Ultrasonic Cleaning Systems operate with a special cleaning wave of +/- 2KHz energy that literally sweeps back and forth throughout the ultrasonic tank. The innovative L&R SweepZone Technology incorporates Pulse Width Modulation (PWM), which enables the machines to sense cleaning loads, solution levels and voltage fluctuations.

SweepZone Ultrasonic Cleaning Systems automatically adjust to different conditions in order to create more uniform cleaning power by eliminating hot spots and weak areas in the tank. This results in unsurpassed cleaning performance with every application.

Durable stainless steel housing and tank are corrosion resistant and long lasting.

Designed and Manufactured in the USA.

Product Specifications

  • Input Power

    500 Watts

  • Amps

    4.3 Amps

  • Output Cleaning Frequency

    43kHz (+/- 2kHz)

  • Tank Capacity

    11.62 Gal
    44.0 L

  • Internal Tank Dimensions

    14.0 x 16.0 x 10.0 in
    35.6 x 40.6 x 25.4 cm

  • Cutout Dimensions

    17.0 x 19.0 x 20.0 in
    43.2 x 48.3 x 50.8 cm

  • Additional Voltages Available

  • Stainless Steel Cover Included
