SweepZone^® 1000 w/Timer, Heat & Drain

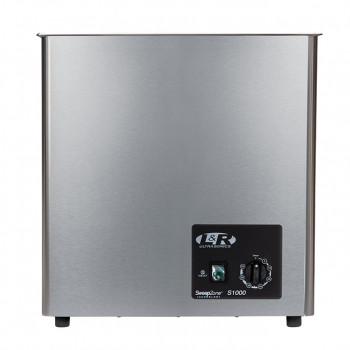

SweepZone 1000 w/Timer, Heat & Drain No Lid

SweepZone® 1000 w/Timer, Heat & Drain

All SweepZone Ultrasonic Cleaning Systems operate with a special cleaning wave of +/- 2KHz energy that literally sweeps back and forth throughout the ultrasonic tank. The innovative L&R SweepZone Technology incorporates Pulse Width Modulation (PWM), which enables the machines to sense cleaning loads, solution levels and voltage fluctuations.

SweepZone Ultrasonic Cleaning Systems automatically adjust to different conditions in order to create more uniform cleaning power by eliminating hot spots and weak areas in the tank. This results in unsurpassed cleaning performance with every application.

Durable stainless steel housing and tank are corrosion resistant and long lasting.

Designed and Manufactured in the USA.

Product Specifications

Input Power
500 Watts
1445 Watts with Heat
Amps
4.3 Amps
12.4 Amps with Heat
Output Cleaning Frequency
43kHz (+/- 2kHz)
Tank Capacity
11.62 Gal
44.0 L
Internal Tank Dimensions
14.0 x 16.0 x 10.0 in
35.6 x 40.6 x 25.4 cm
Cutout Dimensions
17.0 x 19.0 x 20.0 in
43.2 x 48.3 x 50.8 cm
Additional Voltages Available
Stainless Steel Cover Included

Solutions by Industry

SweepZone^® Ultrasonic Cleaning Systems Documents
